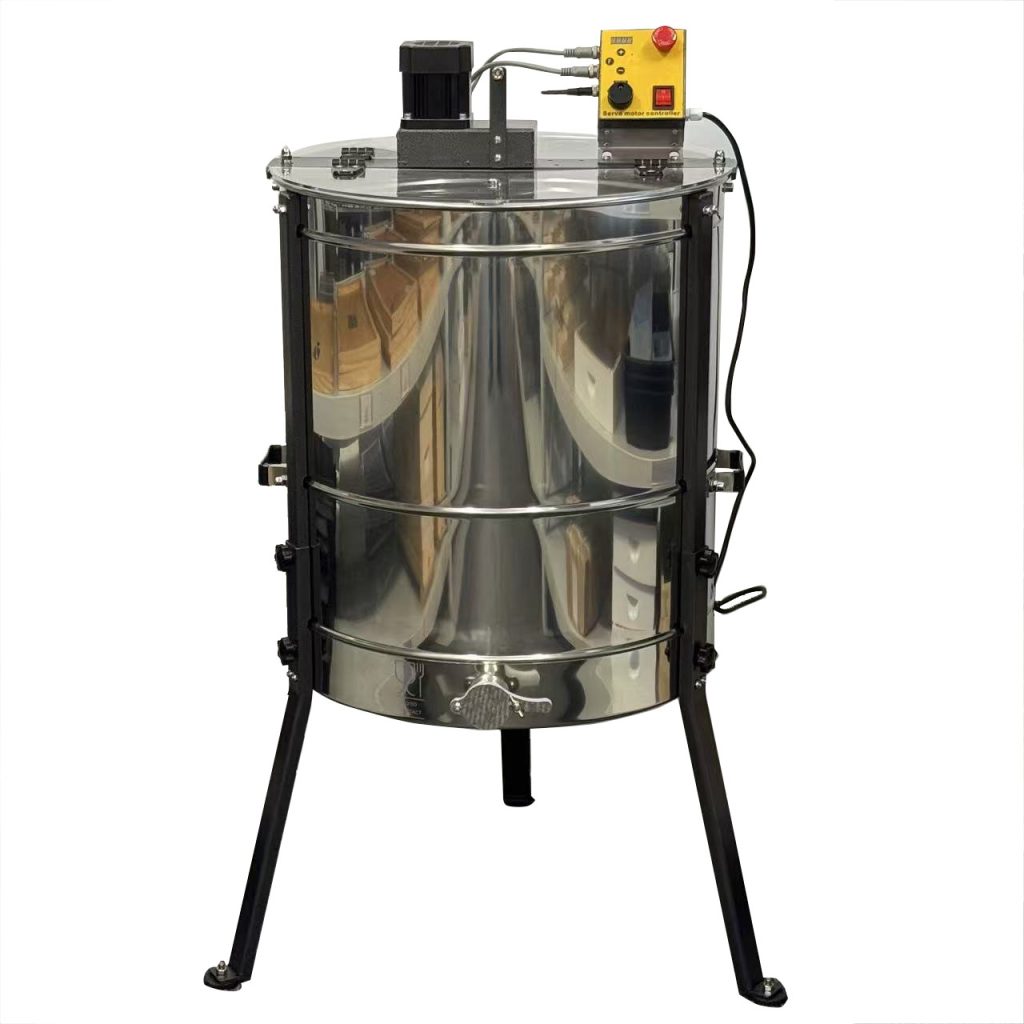

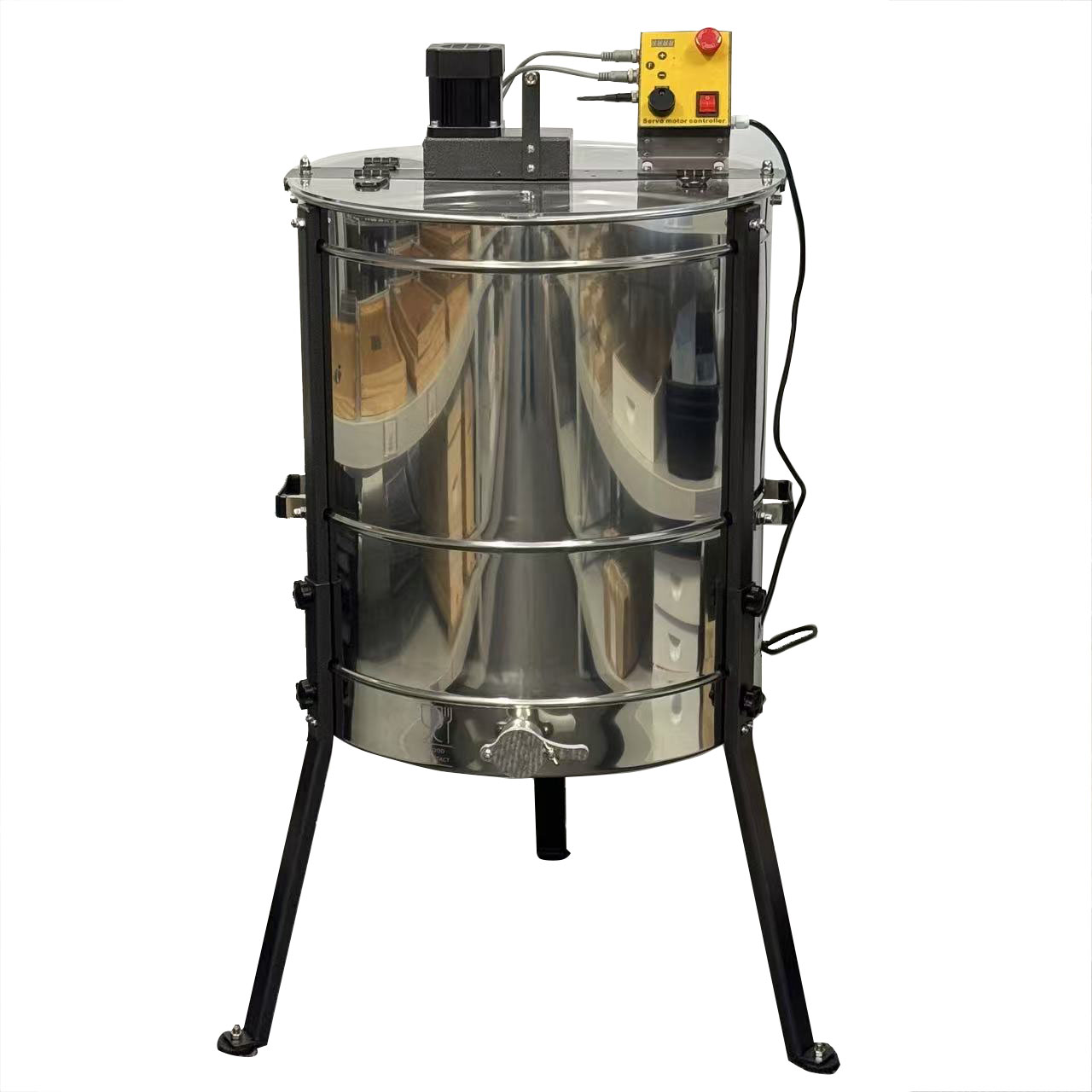

4 Frame Electric Honey Extractor – Sloped Bottom
The YARRA BEE 4 Frame Electric Honey Extractor is designed for efficient and hygienic honey extraction using centrifugal force. Built from high-quality food-grade stainless steel with a sloped-bottom design, this extractor allows honey to flow naturally to the honey gate at the lowest point, making collection fast and easy.
Ideal for small to medium-scale beekeepers, it ensures better hygiene, easy cleaning, and preserves honey quality by minimizing plastic contact.
Key Features
- Holds up to 4 frames per cycle
- High-speed electric motor for efficient extraction
- Variable speed control with forward/reverse function
- Sloped-bottom design for easy honey flow and cleaning
- Honey gate positioned at the lowest point for effortless draining
- Made from food-grade 304 stainless steel
- Compatible with stainless steel honey collection systems
Technical Specifications
- Capacity: 4 frames
- Power Supply: 240V / 50Hz
- Motor Type: Electric high-speed motor
- Control: Adjustable speed + forward/reverse
- Material: 304 stainless steel
- Design: Sloped-bottom with honey gate at lowest point

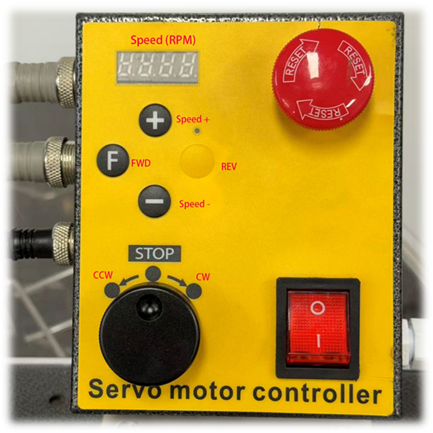

Control Panel Overview
Panel Functions
Digital Display (Speed / RPM)
Displays the current motor speed for accurate control.
Speed Control
- Speed + (Increase Speed)
→ Press to gradually increase the rotation speed - Speed − (Decrease Speed)
→ Press to reduce the rotation speed
Direction Control (Buttons)
Allows switching the rotation direction using the buttons:
- F Button (Forward / CW)
→ Rotates the basket clockwise (CW) - Yellow Button (Reverse / CCW)
→ Rotates the basket counterclockwise (CCW)
Rotary Control Knob (Manual Direction Control)
Allows quick switching between:
- CW (Clockwise rotation)
- STOP
- CCW (Counterclockwise rotation)
Power Switch (I / O)
- I = ON
- O = OFF
Emergency Stop Button (RESET)
- Press to immediately stop all operation in case of emergency
- Rotate to reset before restarting
Before Use
- Place the extractor on a stable and level surface
- Ensure all parts are securely assembled
- Confirm the honey gate is fully closed
- Prepare uncapped frames for extraction
Operating Instructions
1. Load Frames
Insert frames evenly into the basket. Ensure proper balance to minimize vibration.
- Turn on the power
- Begin at low speed
- Gradually increase speed
4. Drain Honey
- Stop the machine completely
- Open the honey gate at the lowest point of the sloped bottom
- Collect honey into a stainless steel strainer or settling tank
Hygiene & Cleaning Advantage
- The sloped-bottom design ensures all honey flows naturally to the gate
- Easy to clean, no dead spots where honey can get trapped
- Use stainless steel collection systems to ensure honey never contacts plastic, preserving purity and flavor
Safety Instructions
- Do not operate at high speed without load
- Always ensure frames are evenly balanced
- Do not open the lid while operating
- Keep hands away from moving parts
- Prevent water from entering the motor
Cleaning & Maintenance
- Clean drum and basket with cold water after use
- Avoid corrosive cleaning agents
- Wipe motor with a dry cloth only
- Store in a clean, dry environment
Troubleshooting
Excessive vibration
→ Rebalance frames evenly
Motor not running
→ Check power supply and controller
Slow honey flow
→ Check honey gate for blockage
